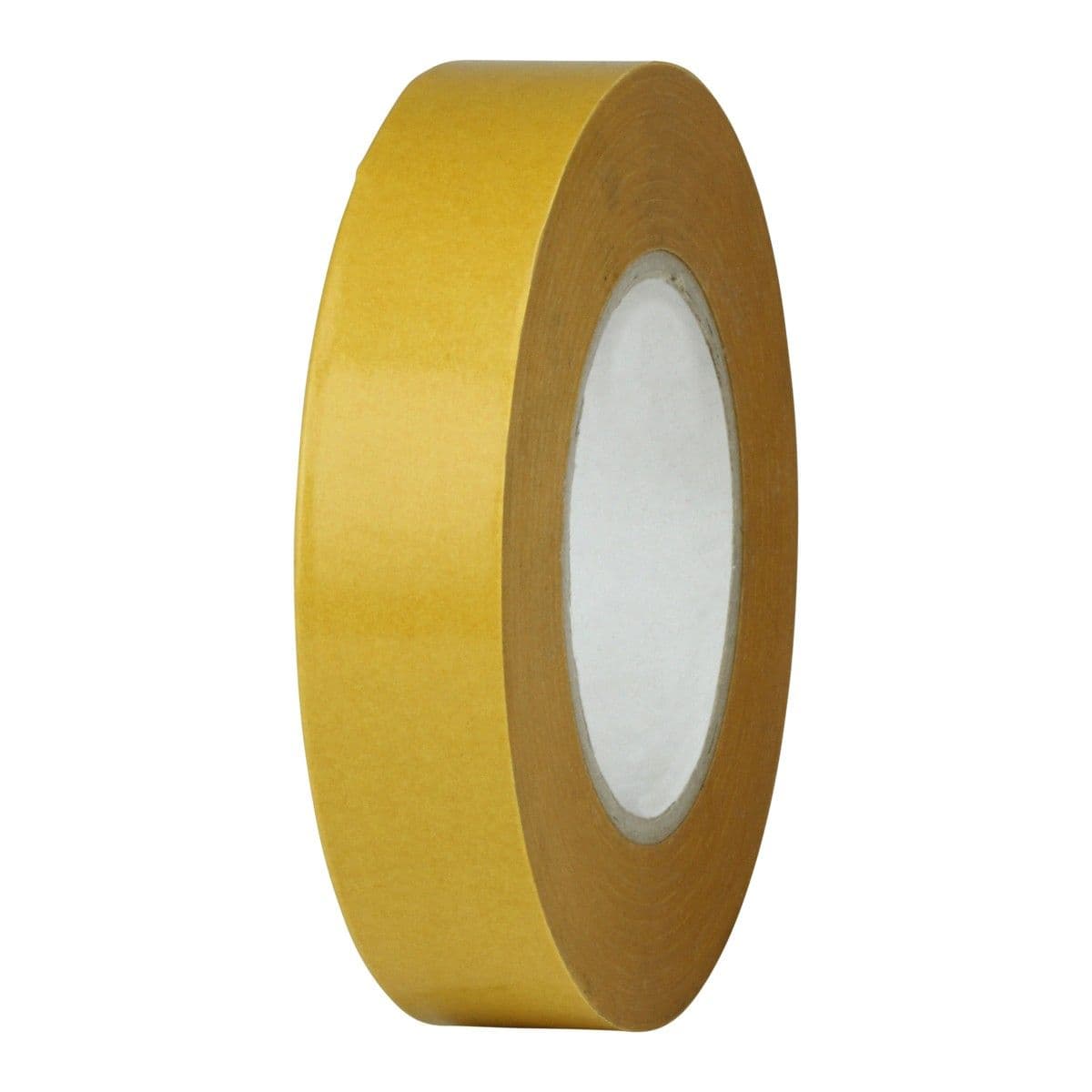

    • EKI 011 Double-sided tape
    Transparent double-sided tape with nonwoven support material, used as temporary mounting tape. Used for: mounting tape for non-permanent adhesion.

    Product attributes

    General Description
    Material type
    double-sided tape
    A material is a naturally or artificially produced substance that is to be further processed into semi-finished or finished products. The right material can be chosen based on the properties needed for your application. Important properties include hardness, elasticity, durability and cost.
    Adhesive type
    acrylate modified
    Type of carrier in adhesive
    non-woven
    Initial adhesion of adhesive
    PSA, repositionable
    Backing
    yellow silicone backing
    Backing weight
    90 g/cm²
    Carrier in adhesive
    non-woven
    Density of carrier
    12 g/m²
    Density glue
    100 g/m²
    Total thickness mm
    0,11 mm
    Possibilities Material
    Self adhesive possibilities
    2 sides
    The self-adhesive options depend on the properties, shape and intended application of the material. We can supply most materials unglued (without a self-adhesive side), with one self-adhesive side, and with two self-adhesive sides. However, some materials cannot have glue applied to them, and there are some profiles that we can only supply with one self-adhesive side.
    Max width of rolls
    1000 mm
    We produce strips and shapes from rolls of material. The standard roll width indicates the possibilities with respect to maximum dimensions.
    Sealing for which joint types
    level/parallel
    flat = smooth surface like metal/uneven = irregular surface like masonry/parallel = a joint that is very constant/gradient = a joint that varies a lot in thickness. Smooth and flat joints are not a problem, but irregular and gradient joints can be challenging. When it comes to masonry, for example, any unevenness should be properly accommodated but still provide a good seal. For gradient joints, the material should be very compressible, but still provide an effective seal in the areas where the tape is much less compressed.
    Technical Properties Material
    Temperature range
    -40 °C to +80 °C, intermittent +90 °C
    FMVSS302
    compliant
    The Federal Motor Vehicle Safety Standard (FMVSS) 302 is an international test that measures the flammability of a material. This standard specifies the burning behaviour exhibited by a material. If a material is compliant, this means that a certain minimum level of safety is guaranteed.
    Application temperature
    > 15 °C
    Adhesive strength after 1 hour
    > 21N/25mm (AFERA 5001)
    Applications, Standards
    REACH
    compliant
    REACH is a European regulation that deals with which chemical substances should not be included in materials. The main idea behind it is the improved protection of human and environmental health from the risks of chemicals. This list of substances is regularly modified and expanded, and EKI monitors this on an ongoing basis.
    RoHS
    compliant
    The RoHS (Restriction of Hazardous Substances) directive is concerned with limiting the use of hazardous substances in electrical and electronic equipment. This standard is therefore mainly used in the electrical industry and is regularly updated. EKI monitors this on an ongoing basis.
    Recyclable
    compliant
    We are already recycling residual waste from our production process as much as possible. In most cases, this means grinding the rubber or foam into small pellets that are then reused as the basis for new products. If customers return residual waste, EKI includes it in this recycling process.
    CFC and HCFC free
    compliant
    In short, the material is ozone-friendly. We get this question regularly at EKI, especially from sealant companies. Although the question is more applicable to some materials than to others, we have extended this notion throughout our entire range.
    Shelf life
    1 year
    The amount of time a material may remain in stock after it has come in, before being used. This is based on an assumption of normal indoor conditions, and that the material is still in its original packaging. Our guideline is a temperature of 20°C and relative humidity of 40% to 50%.
    General Description
    Material type
    double-sided tape
    A material is a naturally or artificially produced substance that is to be further processed into semi-finished or finished products. The right material can be chosen based on the properties needed for your application. Important properties include hardness, elasticity, durability and cost.
    Adhesive type
    acrylate modified
    Type of carrier in adhesive
    non-woven
    Initial adhesion of adhesive
    PSA, repositionable
    Backing
    yellow silicone backing
    Backing weight
    90 g/cm²
    Carrier in adhesive
    non-woven
    Density of carrier
    12 g/m²
    Density glue
    100 g/m²
    Total thickness mm
    0,11 mm
    Possibilities Material
    Self adhesive possibilities
    2 sides
    The self-adhesive options depend on the properties, shape and intended application of the material. We can supply most materials unglued (without a self-adhesive side), with one self-adhesive side, and with two self-adhesive sides. However, some materials cannot have glue applied to them, and there are some profiles that we can only supply with one self-adhesive side.
    Max width of rolls
    1000 mm
    We produce strips and shapes from rolls of material. The standard roll width indicates the possibilities with respect to maximum dimensions.
    Sealing for which joint types
    level/parallel
    flat = smooth surface like metal/uneven = irregular surface like masonry/parallel = a joint that is very constant/gradient = a joint that varies a lot in thickness. Smooth and flat joints are not a problem, but irregular and gradient joints can be challenging. When it comes to masonry, for example, any unevenness should be properly accommodated but still provide a good seal. For gradient joints, the material should be very compressible, but still provide an effective seal in the areas where the tape is much less compressed.
    Technical Properties Material
    Temperature range
    -40 °C to +80 °C, intermittent +90 °C
    FMVSS302
    compliant
    The Federal Motor Vehicle Safety Standard (FMVSS) 302 is an international test that measures the flammability of a material. This standard specifies the burning behaviour exhibited by a material. If a material is compliant, this means that a certain minimum level of safety is guaranteed.
    Application temperature
    > 15 °C
    Adhesive strength after 1 hour
    > 21N/25mm (AFERA 5001)
    Applications, Standards
    REACH
    compliant
    REACH is a European regulation that deals with which chemical substances should not be included in materials. The main idea behind it is the improved protection of human and environmental health from the risks of chemicals. This list of substances is regularly modified and expanded, and EKI monitors this on an ongoing basis.
    RoHS
    compliant
    The RoHS (Restriction of Hazardous Substances) directive is concerned with limiting the use of hazardous substances in electrical and electronic equipment. This standard is therefore mainly used in the electrical industry and is regularly updated. EKI monitors this on an ongoing basis.
    Recyclable
    compliant
    We are already recycling residual waste from our production process as much as possible. In most cases, this means grinding the rubber or foam into small pellets that are then reused as the basis for new products. If customers return residual waste, EKI includes it in this recycling process.
    CFC and HCFC free
    compliant
    In short, the material is ozone-friendly. We get this question regularly at EKI, especially from sealant companies. Although the question is more applicable to some materials than to others, we have extended this notion throughout our entire range.
    Shelf life
    1 year
    The amount of time a material may remain in stock after it has come in, before being used. This is based on an assumption of normal indoor conditions, and that the material is still in its original packaging. Our guideline is a temperature of 20°C and relative humidity of 40% to 50%.
    Disclaimers

    The published technical data is based on research data and serves as a guide for the various applications. Due to the great diversity of products and application possibilities, the buyer must test himself whether the intended material meets the requirements. All information is subject to typing errors, mistakes and market developments and no rights can be derived from this.

    Documents

    10B2A05A-22A7-4126-BC4D-22BF6DC97953
    EKI 011 Double-sided tape + pdf
